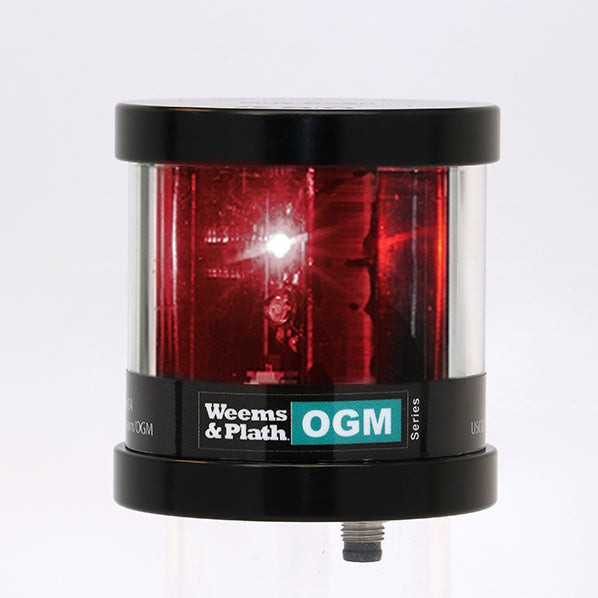

Weems & Plath LX All Around (RED) LED Nav Light (for Commercial & Military Vessels)
✔FREE Domestic Shipping Orders $49+
✔Easy 30-Day Returns
✔Best Price Guarantee
✔Expert Customer Service
Weems & Plath LX All Around (RED) LED Nav Light (for Commercial & Military Vessels)
Designed and built for the extreme ocean environment, this rugged and waterproof RED LED Light is viewable by 360° and exceeds 2 nautical miles of visibility for commercial vessels. Certified for commercial or military power vessels up to 164 feet in length.
U.S. Coast Guard approved and used by the USCG and onboard other military vessels since 2004. The LX Collection of Weems & Plath OGM LED Navigation Lights was the first in the world to be USCG approved and has set the standard for all others to follow.
Includes 3-foot wiring. Mounting bracket sold separately.
Features:
- Visibility: 2+NM
- Voltage Range: 9-30V DC
- Current Draw:? 0.33 Amps at 12V DC
- Power Consumption: 6 Watts
- Horizontal Viewing Angle: 360°
- Vertical Viewing Angle: +/- 18°
- Durability: Designed to exceed IP67
- Wiring: 3-pin waterproof, quick-disconnect plug with 3-foot mating cable
- Certifications: USCG 2NM, ABYC-A16, COLREGS '72
- Construction: Military Spec Anodized Aluminum, UV Resistant Cast Acrylic
- Made in the USA
- Limited LIFETIME Warranty (effective 04/24/2019)
Specifications
- Dimensions: 2.75" (7 cm) Diameter x 2.75" (7 cm) Height
- Weight: 0.60 lb (0.27 kg)
- UPC Code: 721002911797
